SHACMAN H3000 Adopting the body cab of the German MAN TGS model, it has the leading design technology and manufacturing technology of Europe, with better lateral adaptability and trafficability.
The H3000 series is great for medium to long distance transportation in and around an urban environment.

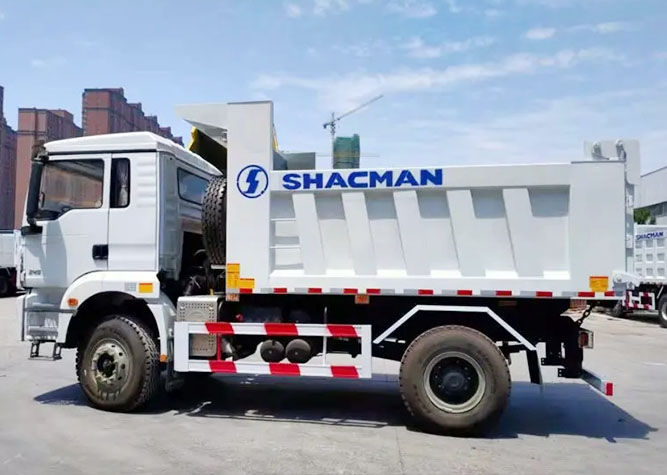

| SHACMAN H3000 4×2 dump truck(8~15m³) | ||
| Transport type | Mining Engineering | |
| Logistics type | Garbge/sand/agriculture | |
| Road type | Offroad | |
| Weight Parameter | Curb mass(kg) | 9800 |
| Full loaded mass(kg) | 18000 | |
| Dimension Parameter | External Size(L*W*H) mm | 6750*2490*3270 |
| Wheel Base(mm) | 3800 | |
| Cabin | H3000 standard | Rear window,Automated air condition, Hydraulic suspension of cab, Hydraulic driver seat with seatbelt, One sleeper, Hydraulic reversal, Radio with MP3 player. |
| Engine | Model | WP10.300E22 |
| Horsepower | 220kw/300hp | |
| Max. torque | 1240N.m | |
| Displacement | 9.726L | |
| Type | water-cooled, turbo-charged & inter-cooled, direct injection | |
| Transmission | Model | 10JSD180+QH50 |
| Clutch | 430 | |
| Front Axle | Type | MAN7.5T |
| Rear Axle | Type | 13T MAN double reduction |
| Axle Ratio | 5.92 | |
| Cargo | Carriage Internal Dimensions(mm) | 4000*2300*1100 |
| Steel | Q255, Q355, T700,H800, NM450 etc. | |
| Cubage(m³) | 8~15 | |
| Steel thickness of Carriage(mm) | Floor:8mm/ Side:6mm | |
| Can be customized according to different working condition | ||
| Performance Parameter | Max.Speed (km/h) | 80 |
| Economic Speed(km/h) | 65~80 | |
| Tire | 11.00R20/295/80R22.5 | |
| approach / departure angle(°) | 28/23 | |
| fuel | diesel | |
| capacity of fuel tank | 400L (aluminum shell) | |
| battery | 165AH | |
| Max. gradeability(%) | 30 | |
