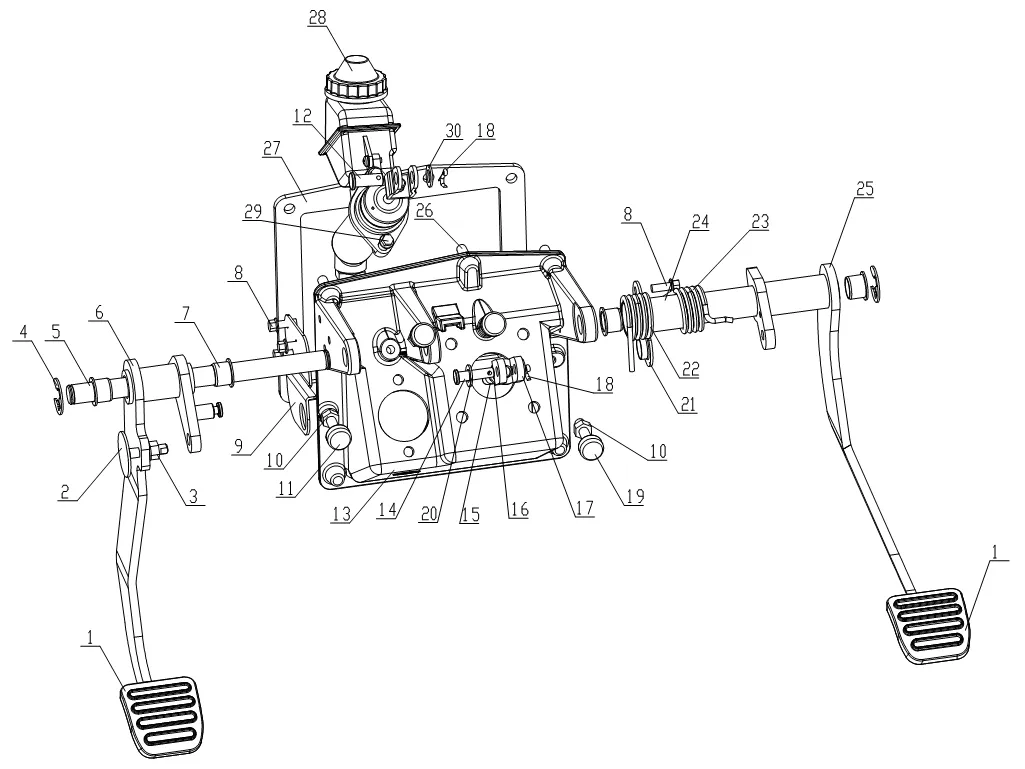

| Combined Pedal Assembly | ||||
|---|---|---|---|---|
| No. | Part No. | Part Name | Qty | Remark |
| 1 | YZ952536000105+001/1 | Pedal Sheath YG9525360815-13 | 1 | |
| 2 | YZ952536000105+002/1 | Adjustment Block YG9525360815-11 |
1 | |
| 3 | Q32008 | Hexagon Nut With Flange | 1 | |
| Original Part | Q32008 | Hexagon Nut With Flange | 1 | |
| Replacement Part | ZQ32008 | Hex Flange Nut M8 | 1 | |
| 4 | YZ952536000105+003/1 | Opening Retaining Ring 3504020-50A-19 |
1 | |
| 5 | YZ952536000105+004/1 | Pedal Shaft WG9525361810-08 | 1 | |
| 6 | YZ952536000105+005/1 | Clutch Pedal Arm Assembly YG9525360815-20 |
2 | |
| 7 | YZ952536000105+006/1 | Bushing 3504020-50A-16 | 1 | |
| 8 | Q1840616 | Hexagon Bolt With Flange | 7 | |
| 9 | YZ952536000105+007/1 | Clutch Switch Installation Bracket YG9525360815-09 |
7 | |
| 11 | YZ952536000105+008/1 | Clutch Limit Bolt YZ95252300030/1 |
1 | |
| 12 | Q5101022 | Axis Pin | 1 | |
| 13 | YZ952536000105+009/1 | Pedal Base YG9525360815-01 | 1 | |
| 14 | Q5100830 | Axis Pin | 1 | |
| 15 | YZ952536000105+010/1 | Top Rod WG9525361810-14 | 1 | |
| 16 | Q351B10 | Hexagon Flat Nut | 1 | |
| 17 | YZ952536000105+011/1 | Connecting Fork 35M-02010-14 | 12 | |
| 18 | YZ952536000105+012/1 | Split Pin Q5002518 | 12 | |
| 19 | YZ952536000105+013/1 | Limit Bolt YG9525360815-16 | 1 | |
| 20 | YZ952536000105+014/1 | Plastic Washer 3506310L4000-17 |
2 | |
| 21 | YZ952536000105+015/1 | Brake Switch Mounting Bracket YG9525360042/1 |
1 | |
| 22 | YZ952536000105+016/1 | Clutch Return Spring YG9525360815-02 |
12 | |
| 23 | YZ952536000105+017/1 | Brake Return Spring YG9525360815-03 |
8 | |
| 23 | YZ952536000105+018/1 | Pedal Anti-Wear Sleeve YG9525360815-12 |
4 | |
| 24 | YZ952536000105+019/1 | Brake Pedal Arm Assembly YG9525360815-10 |
2 | |
| 25 | YZ952536000105+020/1 | Double Headed Bolt WG9525361810-13 |
2 | |
| 26 | YZ952536000105+021/1 | Sealing Gasket YG9525360815-07 |
4 | |
| 27 | YZ952536000105+022/1 | Clutch Master Cylinder VIE0072_1608_100 |
4 | |
| 28 | Q1840820 | Hexagon Bolt With Flange | 1 | |
| 29 | Q40010 | Small Washer | 4 | |
| Original Part | Q40010 | Small Washer | 1 | |
| Replacement Part | Q40010F31 | Small Gasket | 1 | |
