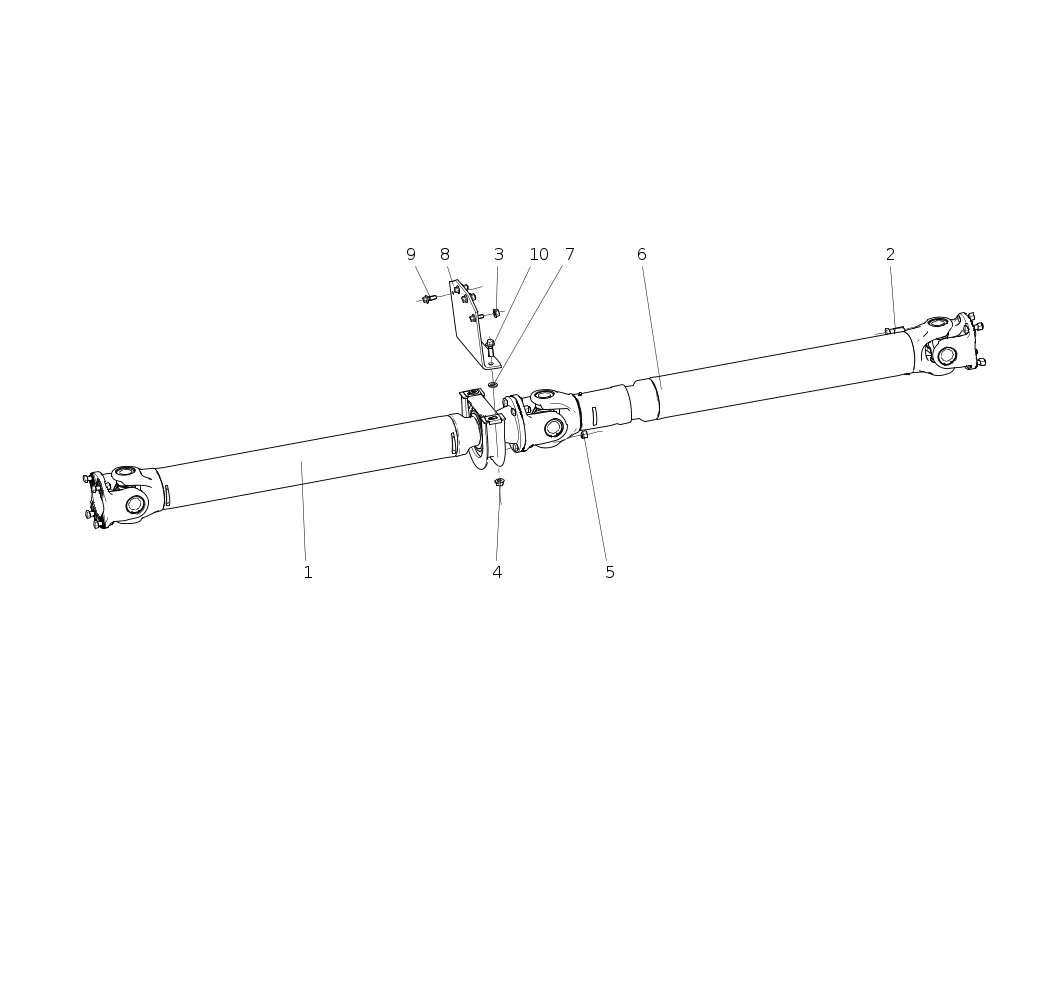

| Drive shaft(Wheelbase4700 HW1910/MAT16/H | ||||
|---|---|---|---|---|
| No. | Part No. | Part Name | Qty | Remark |
| 1 | AZ9938311400 | Intermediate Transmission Shaft (62160 / XS180 / 23000Nm) |
1 | |
| 2 | ZQ151B1450TF6 | Hexagon Head Bolt M14*1.5 | 12 | |
| 3 | ZQ32512T13F6 | Hexagon Toothed Nut With Flange M12*1.25 |
4 | |
| 4 | ZQ32514T13F6 | Hex Flange Nut With Teeth M14* 1.5 |
2 | |
| 5 | ZQ361B14T13F6 | Hexagon Nut Of Type 2 M14*1. 5 |
12 | |
| 6 | AZ9939311515 | Powertrain System | 1 | |
| 7 | Q401B14 | Flat Washer | 2 | |
| 8 | WG9525310030 | Support Angle Plate | 1 | |
| Original Part | WG9525310030 | Support Angle Plate | 1 | |
| Replacement Part | AZ9525310030 | Support Angle Plate | 1 | |
| 9 | ZQ1811230TF6 | Hexagon Toothed Bolt With Flange M12*1.25 |
4 | |
| 10 | ZQ1811440TF6 | Hex Bolt With Serrated Flange M14*1.5 |
2 | |
