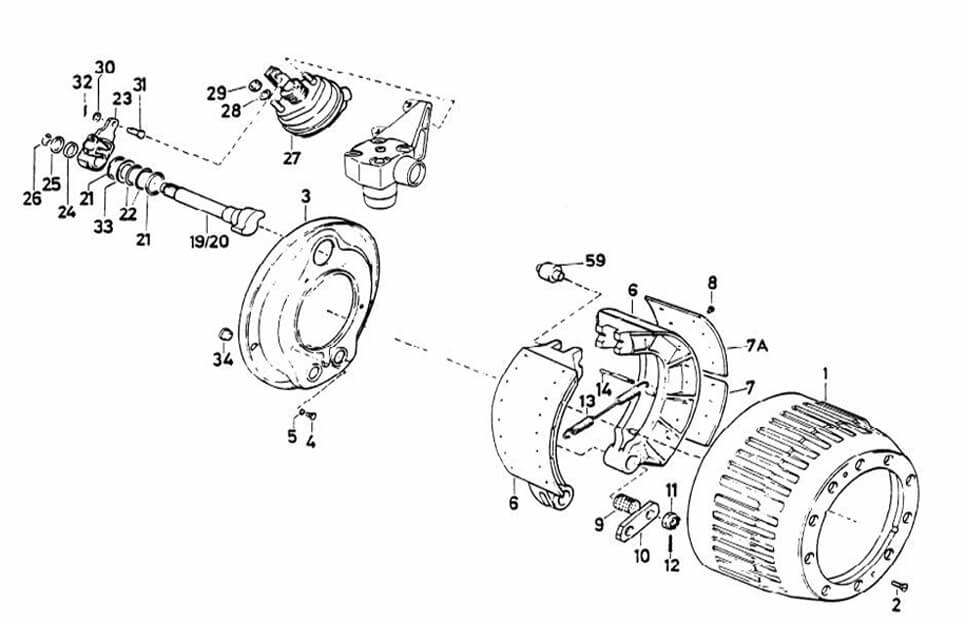

No. |
Part No. | Part Name |
Qty |
|
1 |
AZ9112440001 | Brake drum |
2 |
|
2 |
Q2541025 | Bolt |
4 |
|
3 |
WG9112440006 | Dust shield |
2 |
|
4 |
Q150B0816 | Screw |
8 |
|
5 |
Q40308 | Shim |
8 |
|
6 |
AZ9100440018 | Brake shoe |
4 |
|
7 |
WG9100440029 | “T”brake lining |
4 |
|
7a |
WG9100440027 | “T”brake lining |
4 |
|
8 |
WG9231340068 | Rivet |
56 |
|
9 |
WG880440006 | Bushing |
4 |
|
10 |
WG880440008 | Washer |
2 |
|
11 |
190003872369 | Castle nut |
4 |
|
12 |
Q5005045 | Cotter pin |
4 |
|
13 |
AZ9100440061 | Return spring |
2 |
|
14 |
WG1218G85 | Return spring pin |
4 |
|
19 |
199100440001 | Camshaft (left) |
1 |
|
20 |
199100440002 | Camshaft (right) |
1 |
|
21 |
1880440010 | Washer |
4 |
|
21 |
AZ9100440011 | Washer |
4 |
|
21 |
AZ9100440012 | Washer |
4 |
|
22 |
1880340023 | “O”sealring |
4 |
|
23 |
WG9100440023 | Automatic rod adjuster |
2 |
|
23a |
AZ9100349994 | Bracket |
1 |
|
23b |
AZ9100349995 | Bracket |
1 |
|
23c |
Q150B0818 | Screw |
2 |
|
23d |
Q33408 | Nut |
2 |
|
24 |
WG880340022 | Shim |
2 |
|
25 |
WG80320028 | Shim |
nB |
|
25 |
WG80320029 | Shim |
nB |
|
25 |
WG80320030 | Shim |
nB |
|
25 |
WG80320046 | Shim |
nB |
|
26 |
190003933116 | Washer |
2 |
|
27 |
WG9000360100 | Diaphragrm cyl.left |
1 |
|
27a |
WG9000360101 | Diaphragrm cyl.Right |
1 |
|
28 |
Q41216 | Shim |
4 |
|
29 |
Q340B16 | Nut |
4 |
|
30 |
Q40114 | Flat shim |
2 |
|
31 |
Q5101440 | Pin |
2 |
|
32 |
Q5004022 | Cotter |
2 |
|
33 |
1880440015 | Spacers |
2 |
|
34 |
1880340037 | Plug |
4 |
|
59 |
WG9100440021 | Roller |
4 |
