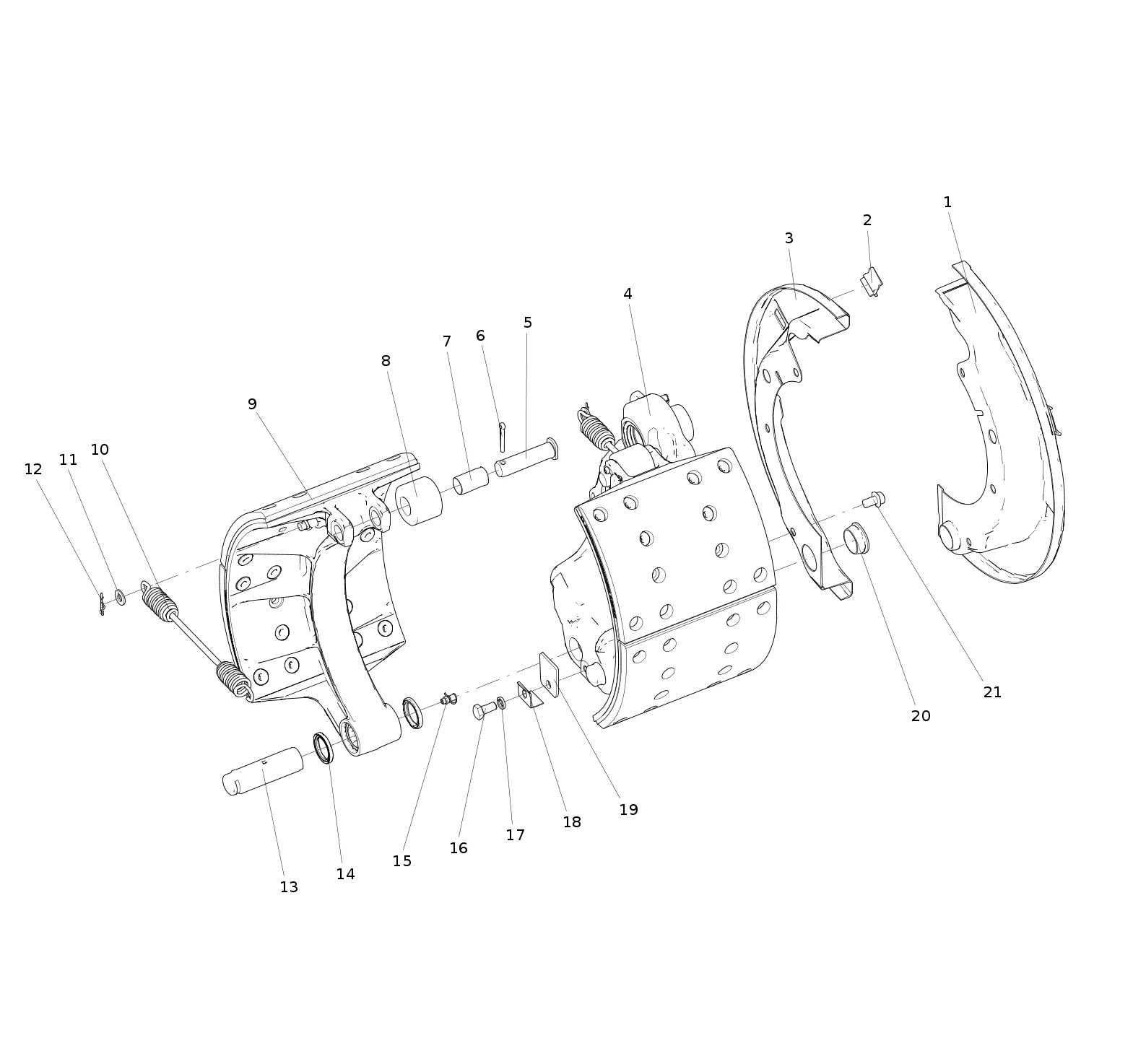

| AZ450045000090 – Front Drum Brake Assembly | ||||
|---|---|---|---|---|
| No. | Part No. | Part Name | Qty | Remark |
| 1 | AZ710034000025 | Brake Dust Cover | 1 | — |
| 2 | AZ712734000007 | Rubber Plug | 2 | Consumable Part |
| 3 | AZ710034000028 | Brake Dust Cover | 1 | — |
| 4 | 711-50202-6127 | Braking Plate Assembly | 1 | Common Service Part |
| 5 | AZ450045000089 | Roller Shaft | 2 | — |
| 6 | Q5005032 | Cotter Pin | 2 | — |
| 7 | WG9761450121 | Roller Bushing | 2 | Common Service Part |
| 8 | WG9761450120 | Roller | 2 | — |
| Original Part | WG9761450120 | Roller | 1 | — |
| Replacement Part | AZ9761450120 | Roller | 1 | — |
| 9 | AZ450045000086 | Brake Shoe Assembly | 2 | Common Service Part |
| 10 | WG7117450317 | Return Spring | 2 | Common Service Part |
| Original Part | WG7117450317 | Return Spring | 1 | — |
| Replacement Part | AZ7117450317 | Return Spring | 1 | — |
| 11 | Q401B10F6 | Flat Washer | 4 | — |
| 12 | Q50110 | Lock Pin | 4 | — |
| 13 | AZ400745410150 | Backing Pin | 2 | — |
| 14 | AZ400745410330 | Support Pin Oil Seal | 4 | Common Service Part |
| 15 | AZ9003963030 | Grease Nipple Assembly (AM8*1 D71412) | 2 | — |
| 16 | ZQ150B1020 | Hex Head Bolt M10 | 1 | — |
| 17 | Q40310 | Spring Washer | 1 | — |
| 18 | WG9761450155 | Lock Plate | 1 | — |
| Original Part | WG9761450155 | Lock Plate | 1 | — |
| Replacement Part | AZ9761450155 | Lock Plate | 1 | — |
| 19 | WG9761450152 | Block Slice | 1 | — |
| Original Part | WG9761450152 | Block Slice | 1 | — |
| Replacement Part | AZ9761450152 | Block Slice | 1 | — |
| 20 | 710W96002-0098 | Plug DM35MM | 2 | — |
| 21 | ZQ1841012 | Hexagon Bolt With Flange M10 | 6 | — |
