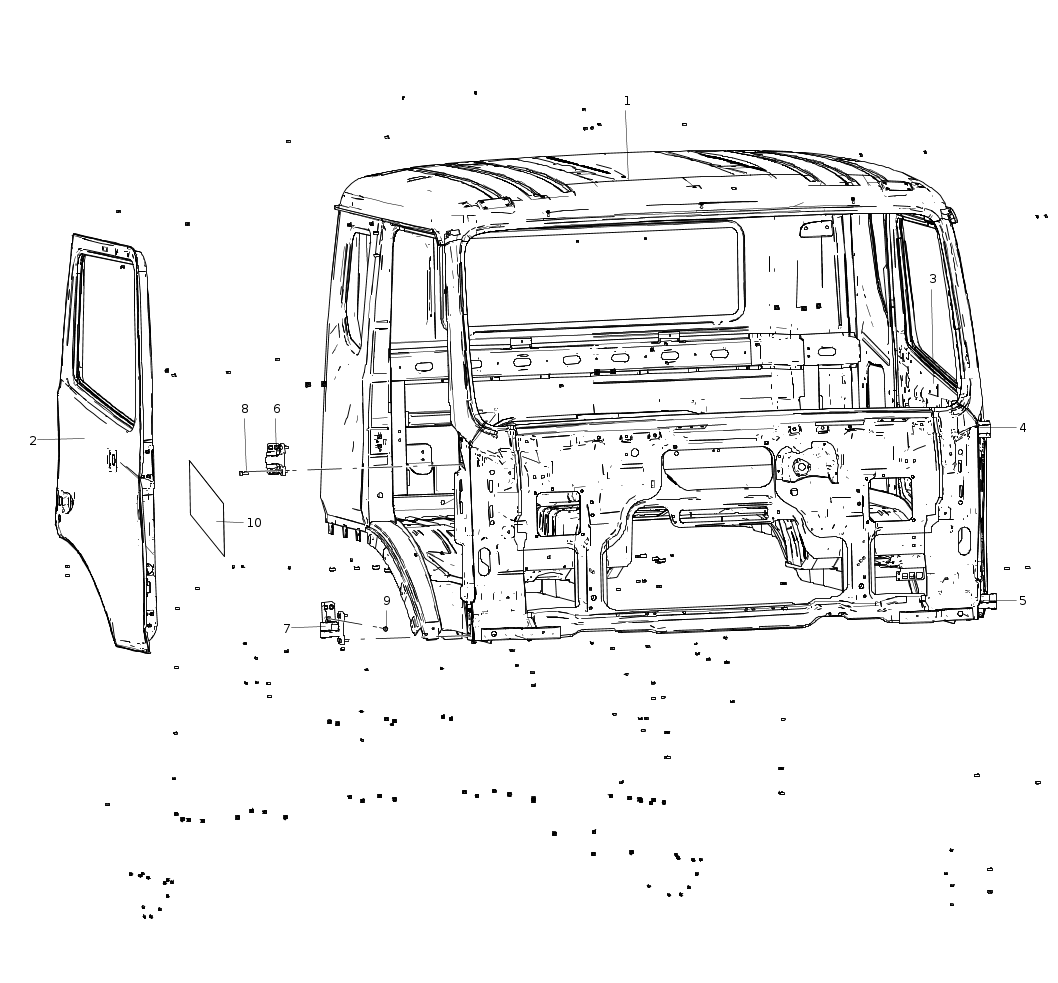

The AZ1671100011 SINOTRUK Cab Body with Doors is designed for H76L/H77L truck cab configurations. This assembly includes the body-in-white structure, left and right door assemblies, door hinges, mounting bolts and reinforcement components. Refer to the parts list for individual replacement part numbers and quantities.
| AZ1671100011 – Cab Body with Doors (H76L/H77L) | ||||
|---|---|---|---|---|
| No. | Part No. | Part Name | Qty | Remark |
| 1 | AZ1671180011 | Body-in-White Parts Assembly | 1 | — |
| 2 | AZ1671210104 | Right Door Assembly | 1 | — |
| 3 | AZ1671210103 | Left Door Assembly | 1 | — |
| 4 | WG1671210057 | Left Door Front Upper Hinge Assembly | 1 | Common After-Sales Part |
| 5 | WG1671210059 | Left Door Front Lower Hinge Assembly | 1 | Common After-Sales Part |
| 6 | WG1671210058 | Right Door Front Upper Hinge Assembly | 1 | Common After-Sales Part |
| 7 | WG1671210060 | Right Door Front Lower Hinge Assembly | 1 | Common After-Sales Part |
| 8 | ZQ1840825 | M8 Hex Flange Bolt | 16 | — |
| 9 | ZQ1840820 | M8 Hex Flange Bolt | 14 | — |
| 10 | WG1671210139 | Door Reinforcement Adhesive Film | 2 | — |
