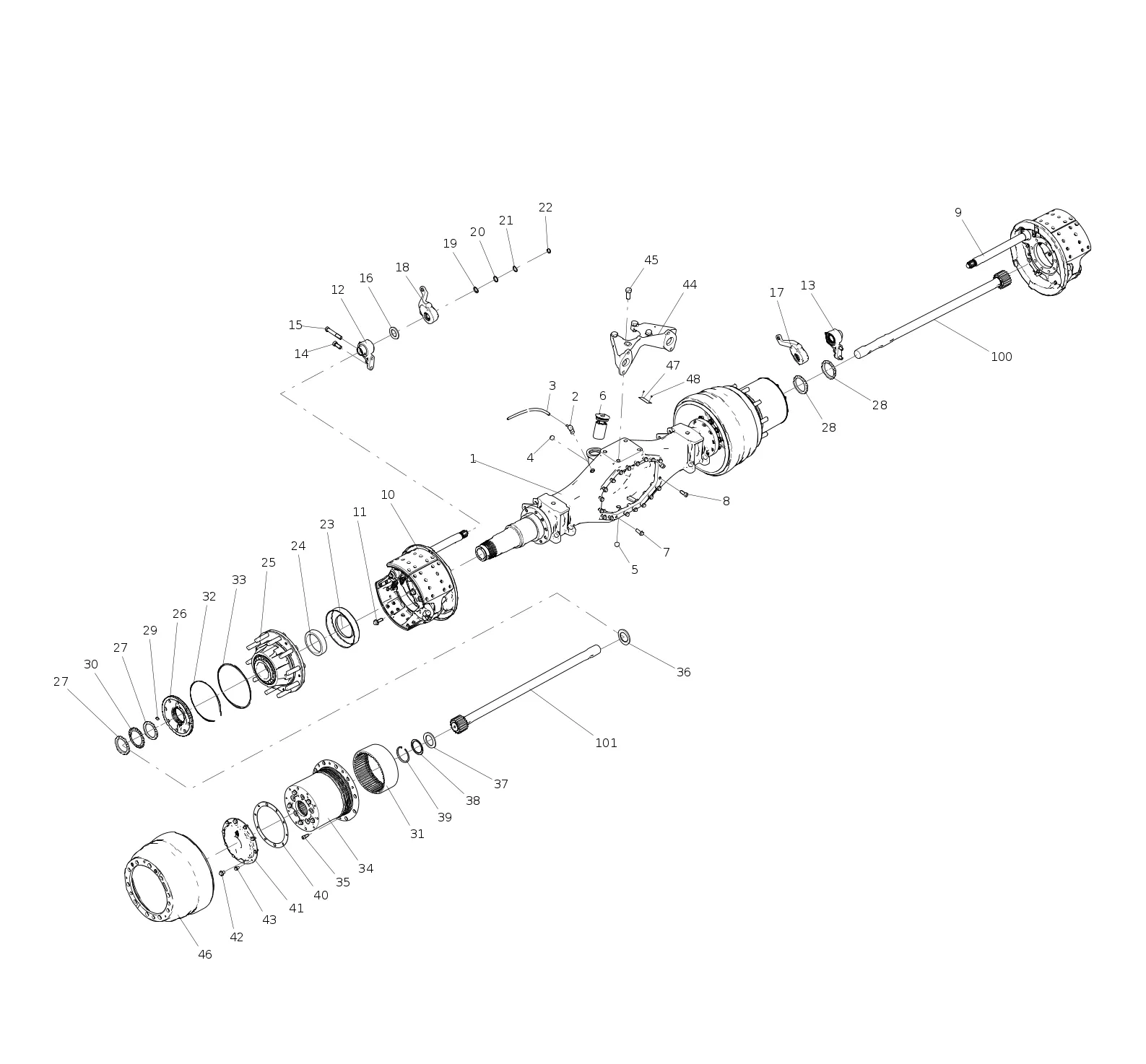

| 1 |
AZ712733001001 |
Axle Housing Assembly |
1 |
— |
| 2 |
WG9231330105 |
Ventilation Plug |
1 |
— |
| Original Part |
WG9231330105 |
Ventilation Plug |
1 |
— |
| Replacement Part |
AZ9231330105 |
Ventilation Plug |
1 |
— |
| 3 |
WG9231330106 |
Rubber Hose |
1 |
— |
| Original Part |
WG9231330106 |
Rubber Hose |
1 |
— |
| Replacement Part |
AZ9231330106 |
Rubber Hose |
1 |
— |
| 4 |
WG9003960024 |
Hexagon Socket Tapered Screw Plug DIN906 – M24X1.5 – St |
1 |
— |
| Original Part |
WG9003960024 |
Hexagon Socket Tapered Screw Plug DIN906 – M24X1.5 – St |
1 |
— |
| Replacement Part |
AZ9003960024 |
Hexagon Socket Tapered Screw Plug DIN906 – M24X1.5 – St |
1 |
— |
| 5 |
WG9981330024 |
Magnetic Hexagon Socket Tapered Screw Plug Assembly M24x1.5 DIN158 |
1 |
— |
| 6 |
WG7117337170 |
Oil Filter |
1 |
— |
| 7 |
AZ9003961440 |
Hexagonal Flange Anti Loosening Screw M7.012. 04-M14X1.5X40-12.9-MAN18 |
18 |
— |
| Original Part |
AZ9003961440 |
Hexagonal Flange Anti Loosening Screw M7.012. 04-M14X1.5X40-12.9-MAN18 |
1 |
— |
| Replacement Part |
AZ9003961440S |
Not Provided |
1 |
Needs Review: Name Missing |
| 8 |
AZ712732001020 |
Hexagon Socket Head Cap Screw M14 × 1.5 |
2 |
— |
| 9 |
AZ450045000109 |
Drum-Type Brake Assembly |
1 |
— |
| 10 |
AZ450045000110 |
Drum-Type Brake Assembly |
1 |
— |
| 11 |
MQ6-02814-3014 |
Hexagon Bolt With Flange M16X1.5X45 – 100 – MAN183 – Phr |
18 |
— |
| Original Part |
MQ6-02814-3014 |
Hexagon Bolt With Flange M16X1.5X45 – 100 – MAN183 – Phr |
1 |
— |
| 7 |
AZ9003961440 |
Hexagonal Flange Anti Loosening Screw M7.012. 04-M14X1.5X40-12.9-MAN18 |
18 |
— |
| Original Part |
AZ9003961440 |
Hexagonal Flange Anti Loosening Screw M7.012. 04-M14X1.5X40-12.9-MAN18 |
1 |
— |
| Replacement Part |
AZ9003961440S |
Not Provided |
1 |
Needs Review: Name Missing |
| 8 |
AZ712732001020 |
Hexagon Socket Head Cap Screw M14 × 1.5 |
2 |
— |
| 9 |
AZ450045000109 |
Drum-Type Brake Assembly |
1 |
— |
| 10 |
AZ450045000110 |
Drum-Type Brake Assembly |
1 |
— |
| 11 |
MQ6-02814-3014 |
Hexagon Bolt With Flange M16X1.5X45 – 100 – MAN183 – Phr |
18 |
— |
| Original Part |
MQ6-02814-3014 |
Hexagon Bolt With Flange M16X1.5X45 – 100 – MAN183 – Phr |
1 |
— |
| Replacement Part |
MQ6028143014 |
Hexagon Head Bolt (Bearing Pedestal And Main Reducer Housing Connecting Bolt) |
1 |
— |
| 12 |
711-50310-6162 |
Camshaft Bracket Assembly |
1 |
— |
| 13 |
711-50310-6163 |
Camshaft Bracket Assembly |
1 |
— |
| 14 |
ZQ151B1640TF2 |
Hexagon Head Bolt M16*1.5 |
2 |
— |
| 15 |
ZQ151B16105TF2 |
Hexagon Head Bolt M16*1.5 |
2 |
— |
| 16 |
WG9761349007 |
Flat Washer |
2 |
— |
| Original Part |
WG9761349007 |
Flat Washer |
1 |
— |
| Replacement Part |
AZ9761349007 |
Flat Washer |
1 |
— |
| 17 |
WG9761349013 |
Adjusting Arm Assembly (Right) |
1 |
— |
| 18 |
WG9761349014 |
Adjusting Arm Assembly (Left) |
1 |
— |
| 19 |
WG7117349051 |
Flat Washer |
2 |
— |
| Original Part |
WG7117349051 |
Flat Washer |
1 |
— |
| Replacement Part |
AZ7117349051 |
Washer |
1 |
— |
| 20 |
WG7117349052 |
Flat Washer |
2 |
— |
| Original Part |
WG7117349052 |
Flat Washer |
1 |
— |
| Replacement Part |
AZ7117349052 |
Washer |
1 |
— |
| 21 |
WG7117349053 |
Flat Washer |
2 |
— |
| Original Part |
WG7117349053 |
Flat Washer |
1 |
— |
| Replacement Part |
AZ7117349053 |
Washer |
1 |
— |
| 22 |
WG7117349054 |
Clamp Ring |
2 |
— |
| Original Part |
WG7117349054 |
Clamp Ring |
1 |
— |
| Replacement Part |
AZ7117349054 |
Clamp Ring |
1 |
— |
| 23 |
AZ712734001014 |
Oil Baffle Disc |
2 |
— |
| 24 |
AZ712734001012 |
Distance Piece |
2 |
— |
| 25 |
AZ712734001002 |
Rear Wheel Hub Assembly |
2 |
Common Service Part |
| 26 |
712W35114-0174 |
Gear Ring Bracket |
2 |
— |
| 27 |
710W90620-0048 |
Jam Nut (Right) |
2 |
— |
| 28 |
711W90620-0049 |
Jam Nut (Left) |
2 |
— |
| 29 |
712W90801-0225 |
Cross-Key |
2 |
— |
| 30 |
710W90801-0224 |
Locking Gasket |
2 |
— |
| 31 |
712W35111-0043 |
Internally Toothed Annulus |
2 |
— |
| 32 |
710W90810-0074 |
Round Wire Snap Ring |
2 |
— |
| 33 |
AZ712734001009 |
O-Ring Seal |
2 |
— |
| 34 |
AZ712734001105 |
Wheel Rim Reducer Housing Assembly (I= 3.947) |
2 |
— |
| 35 |
MQ6-02099-0204 |
Hex Lobular Socket Head Cap Screw M12X1.5X30-8.8-A3C |
6 |
— |
| 36 |
711W90714-0494 |
Thrust Washer |
2 |
— |
| 37 |
710W90714-0528 |
Thrust Washer |
2 |
— |
| 38 |
710-90702-0117 |
Adjusting Shim |
2 |
— |
| 39 |
MQ6-29020-0209 |
Elastic Snap Ring For Hole |
2 |
— |
| 40 |
710W96601-0711 |
End Cover Gasket |
2 |
— |
| 41 |
710W35114-0162 |
End Cover |
2 |
— |
| 42 |
MQ6-02839-0041 |
Hexagon Bolt With Shoulder |
4 |
— |
| 43 |
MQ6-02814-2407 |
Hexagon Toothed Bolt With Flange |
16 |
— |
| 44 |
WG7121345066 |
Single Rear Axle Air Chamber Bracket |
1 |
— |
| Original Part |
WG7121345066 |
Single Rear Axle Air Chamber Bracket |
1 |
— |
| Replacement Part |
AZ7121345066 |
Air Chamber Bracket |
1 |
— |
| 45 |
ZQ151B2050TF2 |
Hex Head Bolt M20*1.5 |
4 |
— |
| 46 |
WG9761450001 |
Rear Brake Drum |
2 |
Wear Part |
| 47 |
AZ710032900001 |
Name Board |
1 |
— |
| 48 |
190003904529 |
Sign Rivet – Rivet GB827-86-2 .5×6 |
2 |
— |
| 100 |
AZ712734001007 |
Half Axle (Left) |
1 |
— |
| 100 |
WG9003990052 |
Round Wire Snap Ring For Shaft |
2 |
— |
| Original Part |
WG9003990052 |
Round Wire Snap Ring For Shaft |
1 |
— |
| Replacement Part |
AZ9003990052 |
Round Wire Snap Ring For Shaft |
1 |
— |
| 100 |
712W35113-0073 |
Sun Gear |
1 |
— |
| 101 |
WG9003990052 |
Round Wire Snap Ring For Shaft |
2 |
— |
| Original Part |
WG9003990052 |
Round Wire Snap Ring For Shaft |
1 |
— |
| Replacement Part |
AZ9003990052 |
Round Wire Snap Ring For Shaft |
1 |
— |
| 101 |
AZ712734001008 |
Half Axle (Right) |
1 |
— |
| 101 |
712W35113-0073 |
Sun Gear |
1 |
— |
