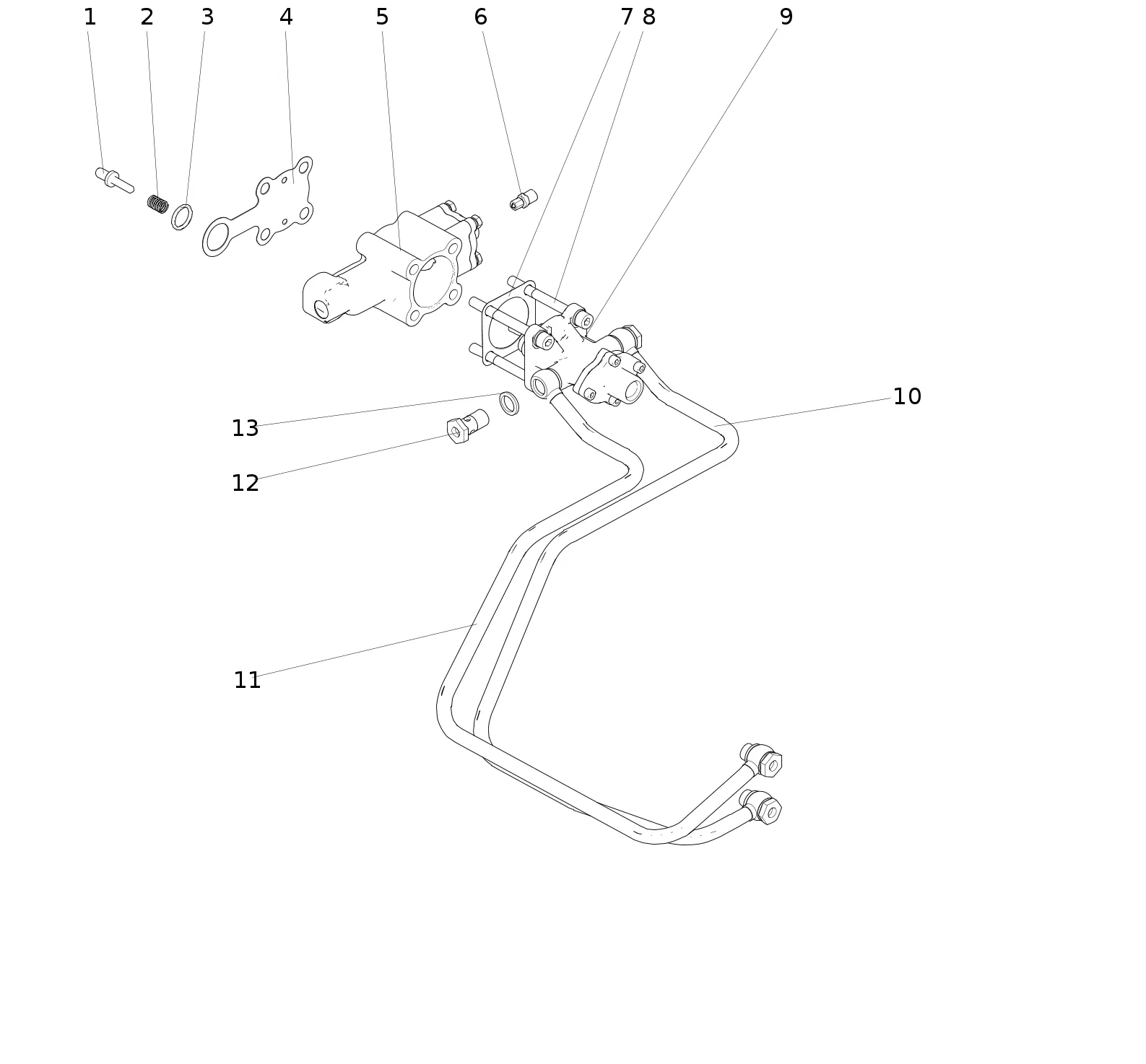

| AC22102500105 – Air Tube & Valve Assembly | ||||
|---|---|---|---|---|
| No. | Part No. | Part Name | Qty | Remark |
| 1 | WG2229250515 | Locking Pin | 1 | |
| 2 | WG2229250504 | Spring | 1 | |
| 3 | WG9003071700 | O-Ring 26500170 GB3452.1 | 1 | |
| Original Part | WG9003071700 | O-Ring 26500170 GB3452.1 | 1 | |
| Replacement Part | AZ9003071700 | O-Ring Seal | 1 | |
| 4 | WG2229250140 | Pneumatic Control Valve Gasket | 1 | Service Replacement Part |
| 5 | WG2203250210 | Pneumatic Control Lockup Valve Assembly |
1 | |
| 6 | WG2229250006 | Straight-Through (Npt 1 / 8 – 4X2) |
1 | |
| 7 | WG2229250138 | Dual H-Valve Gasket | 1 | Service Replacement Part |
| 8 | AZ900381100089 | Combination Coated Screw Q218B0880+Q40608 |
4 | |
| 9 | AZ220325000007 | Dual H-Valve Assembly | 1 | Wear Part |
| Original Part | AZ220325000007 | Dual H-Valve Assembly | 1 | |
| Replacement Part | WG2203250003 | Dual H-Valve Assembly | 1 | |
| 10 | WG2203250019 | Range Gear Molded Hose Assembly (High Gear) |
1 | |
